genel bakış

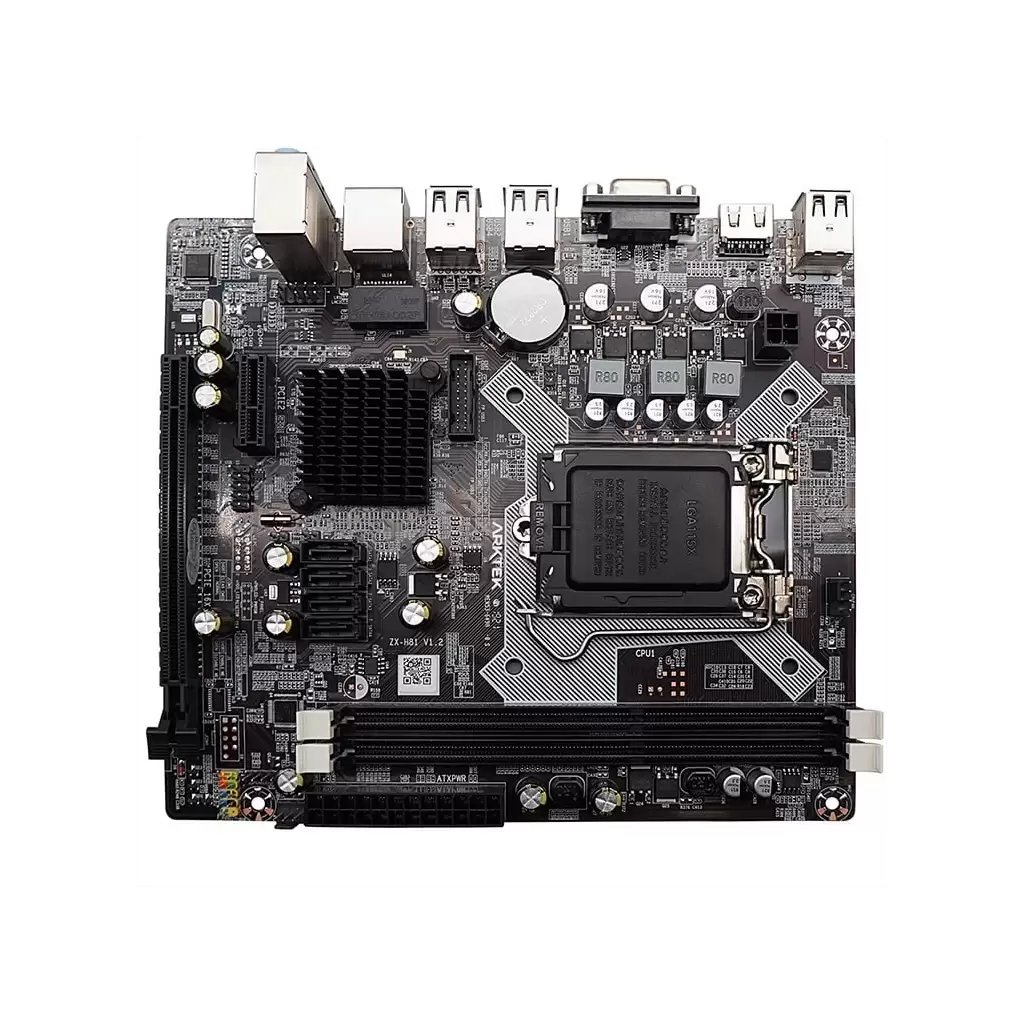

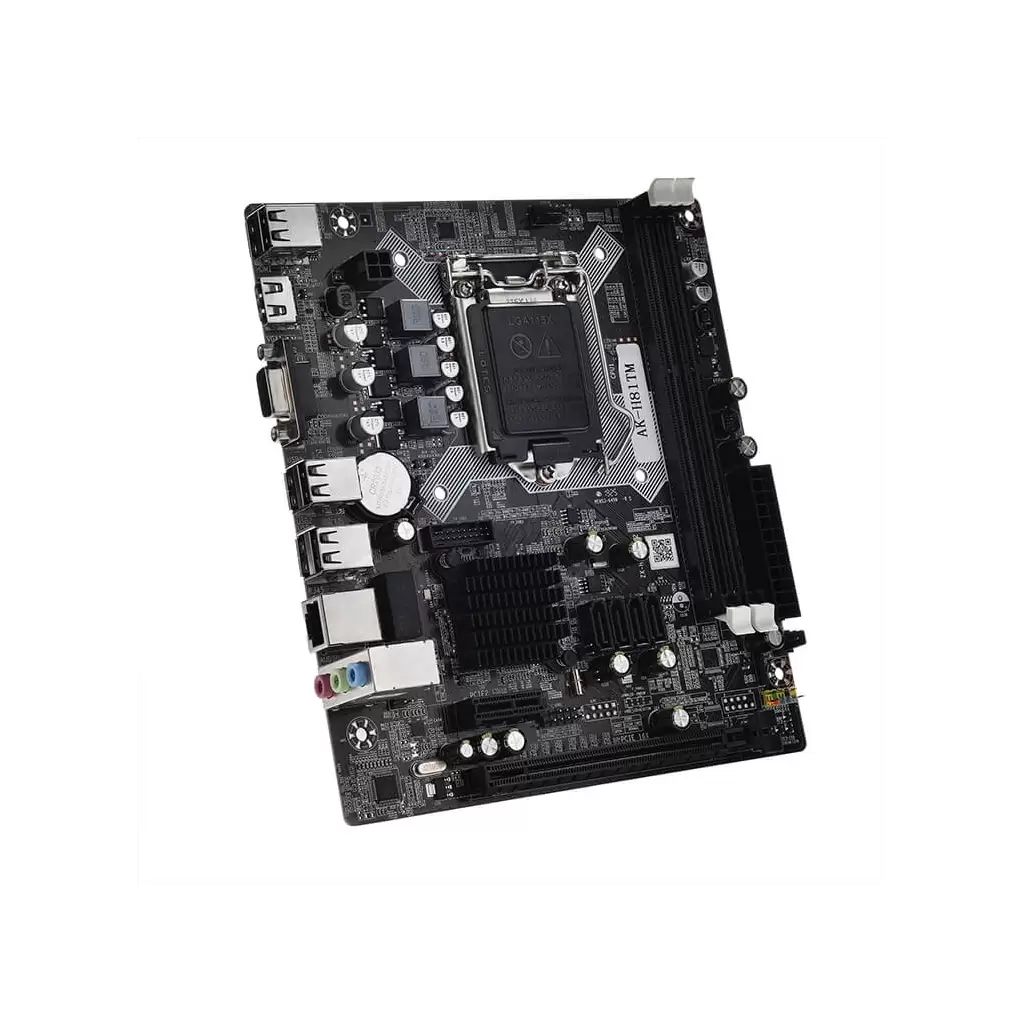

| INTEL H81 | ||
|---|---|---|
| CPU Support | Support Intel® Core™ i7/i5/i3/Pentium®/ Celeron® processors in the LGA1150package. Support Intel 4th generation multi-core processors | |
| Chipset | Intel H81 Chipset | |
| On-Board Graphics | Integrated Graphics Processor | |
| Memory | Dual Channel DDR3 1066/1333/1600MHz, Supports non-ECC, un-buffered memory | |
| DIMM | 2 x Memory Slots (Max. up to 8GB each) | |
| LAN | Onboard Realtek® RTL8105E 100 Mbps | |
| Audio | Onboard Realtek® 662 6-channel HD Audio Codec Front Panel audio-out,mic-in jack | |
| SATA | 4 x SATA port, 1 x M.2 Port | |

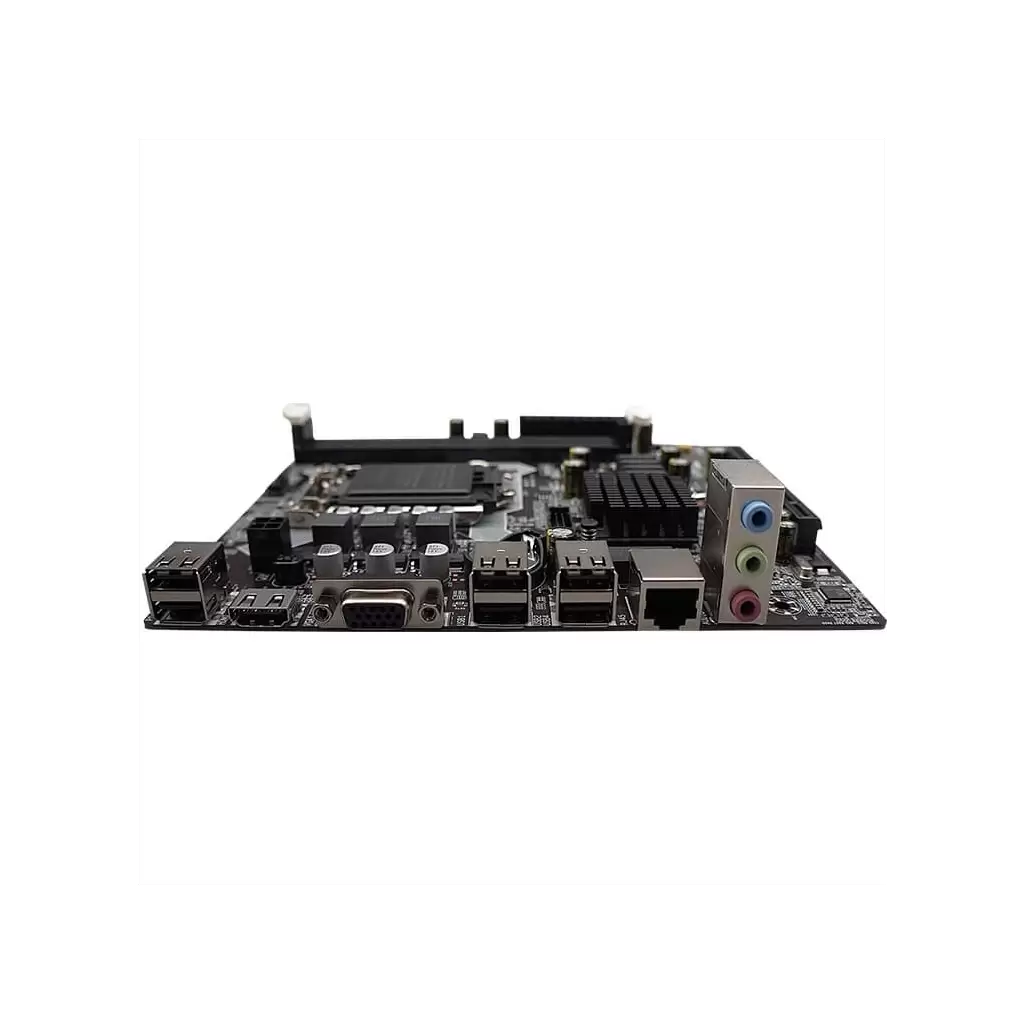

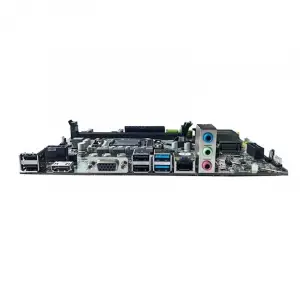

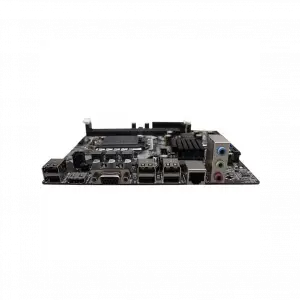

| Back Panel I/O Ports | 1 x VGA port 1 x HDMI port 4 x USB 2.0 port 2 x USB 3.0 port 1 x LAN jack 3 x Audio jack (Line in / Line Ourt / Mic in) | |
| ON-Board Pinheaders /Connectors | 1 x USB 2.0 pinheader supports additional 2 USB 2.0 ports 1 x Front Panel Audio pinheader | |
| Slots | 1 x PCI Express x16 slot, 1 x PCI Express x1 slot | |
| BIOS | UEFI BIOS | |
| Form Factor | Micro-ATX (21cm X 21cm) | |
| Mounting | 6 mounting holes | |
| Accessories | 1 x SATA cable 1 x I/O Backboard 1 x User Manual 1 x Driver CD | |
| Remark | All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies. |
| Chipset | INTEL H81 |
| CPU Platformu | INTEL |
| CPU Yuva Yapısı | 1150 PIN |
| Display Port (DP) | YOK |
| HDMI | VAR |
| Kablosuz Bluetooth | YOK |
| Kablosuz Wi-Fi | YOK |
| Kasa Uyumu | Micro ATX |
| RAM Desteği | DDR3 |
| RAM Yuva Adeti | 2 ADET |
| Type-C | YOK |
